'23 Ford Raptor Fuse Box Mount R&D

Blue Sea 12 Circuit Fuse Block for the CB Radio Going in the Raptor Build

We're finally installing the CB Radio that was originally intended for our F-150 Build! The first step is getting solid power from the truck’s battery to an auxiliary fuse box, we're using a Blue Sea 12 Circuit Block and a circuit breaker mounted in the engine bay.

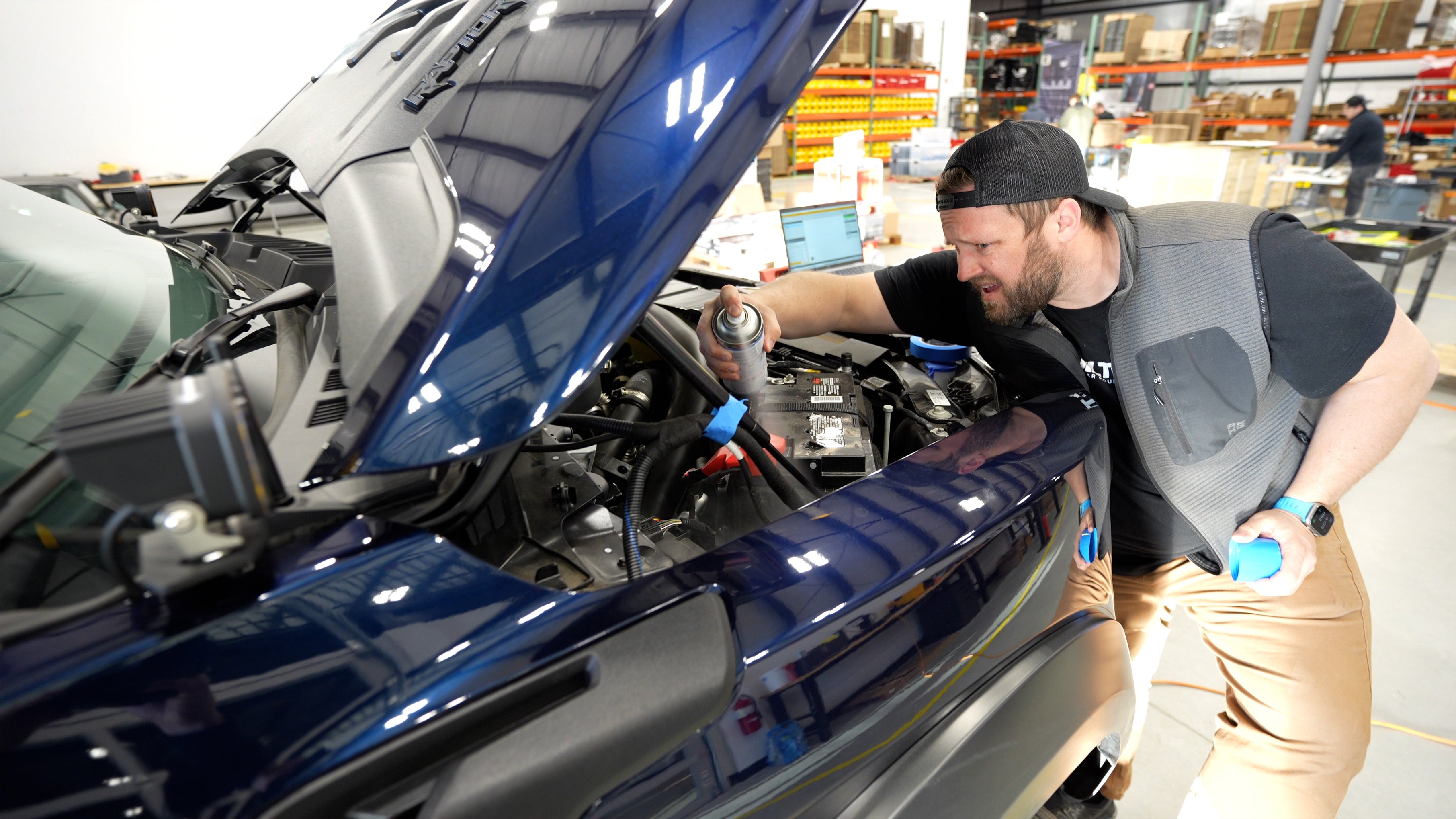

Matt 3D Scanning the 2023 Ford Raptor Engine Bay

First, Matt 3D scanned the open space right above the OEM fuse box next to the battery so we could design a mounting bracket that interfaces with the 2 large flanged bolts holding it in place.

Matt Holding the Fuse Block Next to the 3D Model of it on the Prototype Bracket

We whipped up a quick design in CAD and had a first prototype cut and ready for a test fit in no time. While the mounting functionality of the bracket was there, the ease of installation was not, so Matt went back to the drawing board and got a second prototype cut, bent and painted.

Matt Holding the Prototype Raptor Fuse Box Bracket

This final prototype bracket was a breeze to install, it does the job perfectly and will allow us to reliably wire up the ICOM ID-5100A radio. Please let us know on our social media @builtrightind, in the comments of this blog post, or by reaching out to support@builtrightind.com if you're interested in us bringing these fuse box mounting brackets into production!

2023 Ford Raptor Prototype Auxiliary Fuse Box Mounting Bracket

In next week's episode we get the radio's antenna installed on Bulletproof Diesel's 3rd Brake Light CB Antenna Mount and the brain of the radio mounted behind the back seats on our Rear Seat Back Storage Panel with some light modifications. This project ended up being a little more involved than we expected, but we're doing it right!

Matt Installing the Blue Sea Fuse Box Cover on the Mounted Block in the Raptor's Engine Bay

Watch the full Raptor R&D video here:
